Current Transformer Measurement Transformer Measuring Transformer 24kV LZZBJ9-24/180b/2
- Intro：Type DescriptionTechnical DataRated primary current(A)Accuracy classes combinationRated secondary output(VA)Rated short-time thermal current kA/sRated dynamic current(kA)0.2(S)0.5(S)10P1010P1520-1500.2(S)/0.20.2(S)/0.50.2(S)/10P100.2(S)/10P100.2(S)/10P150.5(S)/10P151010151060I1n150I1n2001230300-5001 …
- Category：10kV-35kV Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

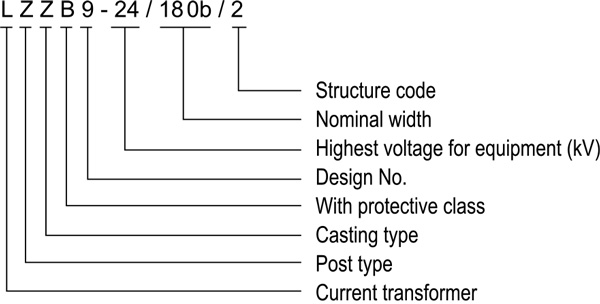

Type Description
Technical Data
| Rated primary current(A) | Accuracy classes combination | Rated secondary output(VA) | Rated short-time thermal current kA/s | Rated dynamic current(kA) | |||
| 0.2(S) | 0.5(S) | 10P10 | 10P15 | ||||
| 20-150 | 0.2(S)/0.2 0.2(S)/0.5 0.2(S)/10P10 0.2(S)/10P10 0.2(S)/10P15 0.5(S)/10P15 | 10 | 10 | 15 | 10 | 60I1n | 150I1n |
| 200 | 12 | 30 | |||||
| 300-500 | 18 | 45 | |||||
| 600、800 | 15 | 20 | 20 | 15 | 36 | 90 | |
| 1000、1200 | 60 | 130 | |||||

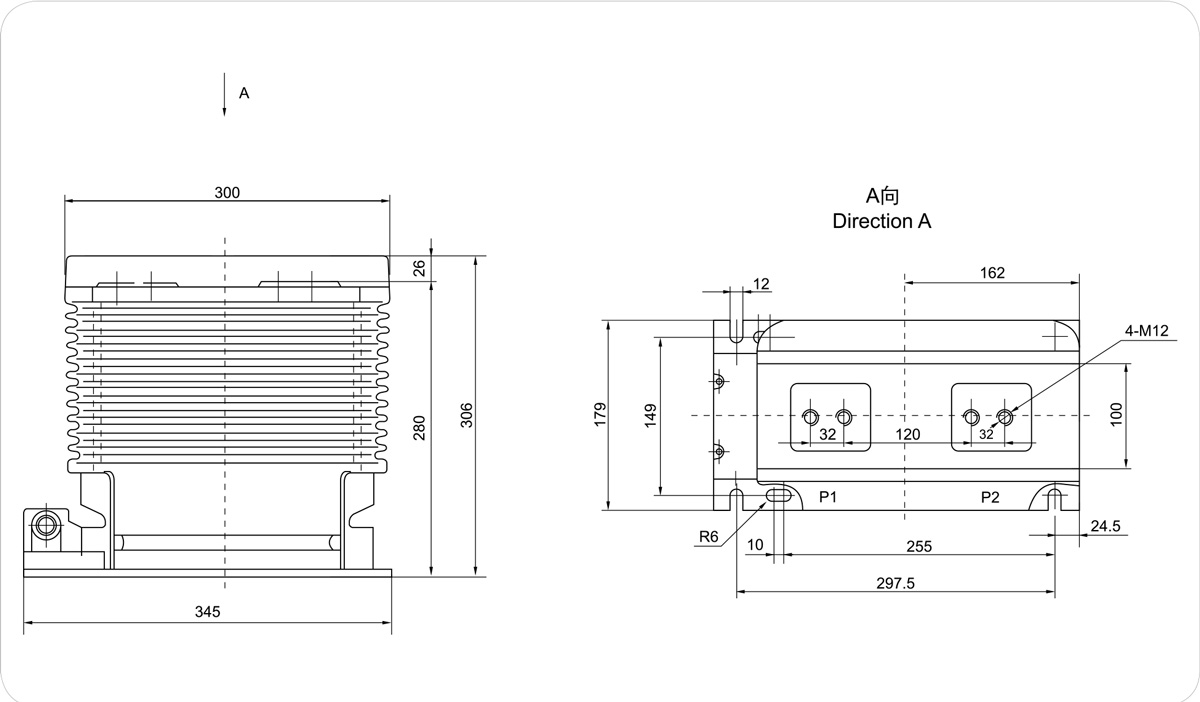

Overall Dimension Drawing
