Inflatable Cabinet Transformer With Capacitor Tube 10kV Potential TransformerJSZY16-10R
- Intro：The range of electric values in power supply systems is extensive. This is why it is necessary to match the respective currents and voltages to the values appropriate to connected measuring, protection, and control instruments. - Rated voltage: 10kV (primary side) / 100V or 100/√3V (secondary side). - High precision: - Measurement accuracy: Class 0.2, Class 0.5 (energy metering). - Protection accuracy: Class 3P, Class 6P (relay protection). - Low loss: small no-load current, low temperature rise, and good long-term operational stability.
- Category：Inflatable Cabinet Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads
Technical Data
○ Indoor totally enclosed epoxy resin pouring type
○ The product performance meets the standard gb20840.3 and iec60044-2
○ Rated insulation level 12 / 42 / 75KV
○ Rated frequency: 50 Hz
Technical Data
| Type | Voltage ratio (V) | Accuracy level combination | Rated output (VA) | Residual voltage winding | Limit output (VA) | Rated insulation level (kV) | |
| Accuracy level | Rated output (VA) | ||||||
| JSZY16-10R | 10000/√3 / 100/√3 / 100/√3 / 100/3 | 0.2 | 15 | 6P | 30 | 500 | 12/42/75 |
| 0.5 | 15 | ||||||
10000/√3 / 100/√3 / 220/√3 / 100/3 | 0.2 | 15 | |||||
| 0.5 | 20 | ||||||
| 3 | 500 | ||||||

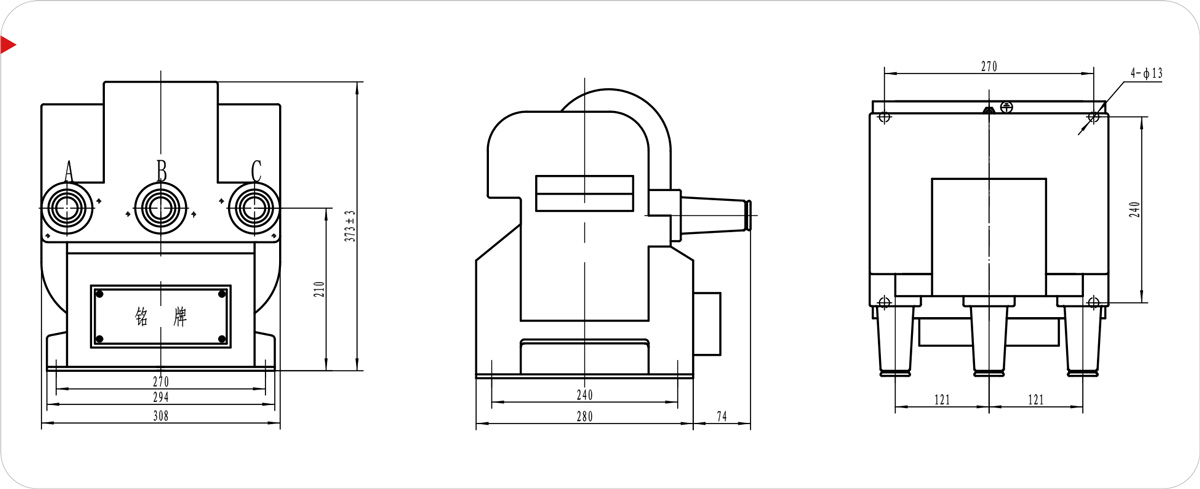

Overall Dimension Drawing
