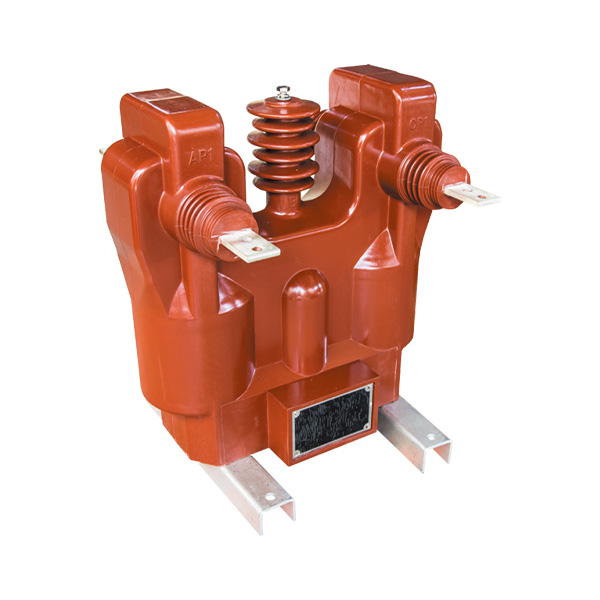

Outdoor Vacuum Circuit Breaker Professional Current Transformer Type CT JDZW-3、6、10R
- Intro：Type DescriptionTechnical DataTypeRated voltageration(V)Accuracy class and rated secondary output(VA)Max.output(VA)Rated insulationlevel(kV)Wiringdiagram0.20.5Level1Level30.2/0.20.2/0.50.5/0.56PJDZW-3R3000/1003050100200///5003.6/25/40Figure 1-2JDZW-6R6000/1007.2/32/60JDZW-10R10000/10012/42/7510000/2 …
- Category：Outdoor Combined Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

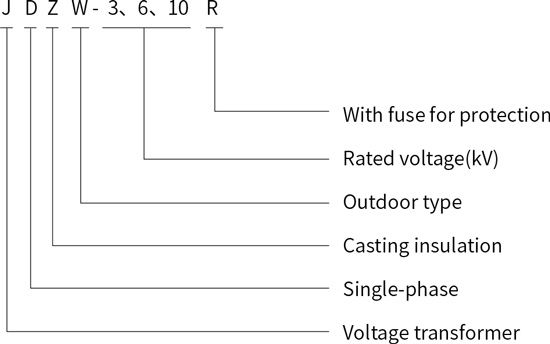

Type Description
Technical Data
| Type | Rated voltage ration(V) | Accuracy class and rated secondary output(VA) | Max.output (VA) | Rated insulation level(kV) | Wiring diagram | ||||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | |||||
| JDZW-3R | 3000/100 | 30 | 50 | 100 | 200 | / | / | / | 500 | 3.6/25/40 | Figure 1-2 |
| JDZW-6R | 6000/100 | 7.2/32/60 | |||||||||
| JDZW-10R | 10000/100 | 12/42/75 | |||||||||
| 10000/220 | |||||||||||
| 10000/100/100 | / | / | / | / | 15/15 15/20 | 30/30 | / | 300/300 | Figure 3-4 | ||
| 10000/100/220 | / | / | / | / | 0.2/3---25/500 0.5/3---50/500 | / | 300/500 | ||||

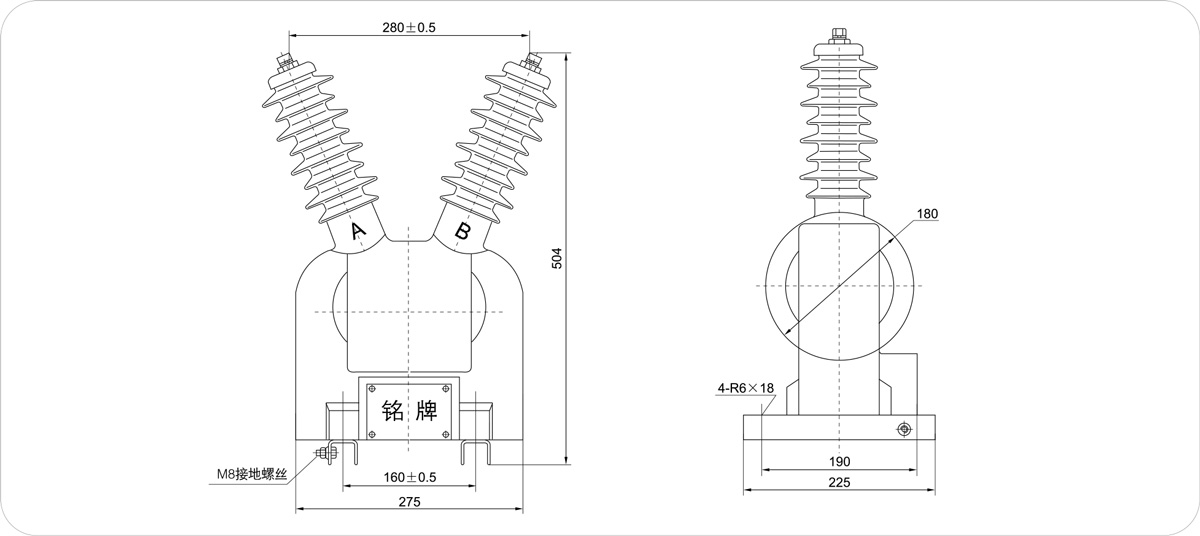

Overall Dimension Drawing

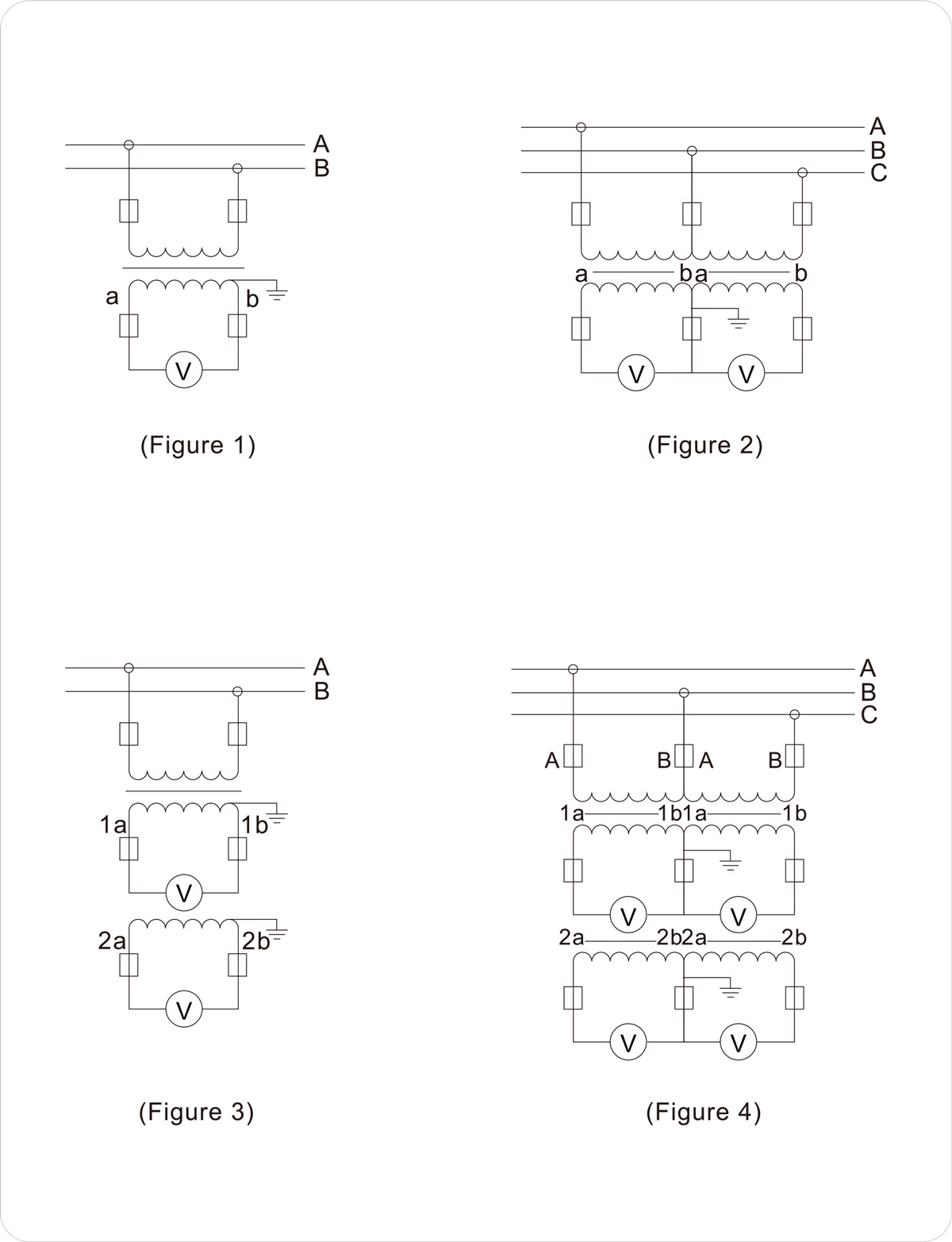

Wiring Diagram
