Voltage Transformer Outdoor Combined Transformer Electromagnetic Transformer Epoxy Casting 10kV JLSZV-6、10W
- Intro：Type DescriptionTechnical DataRarameter voltgae partTypeRated voltgae ratio(V)Accuracy class and rated secondary output(VA)Max.output(VA)Rated insulation level(kV)JLSZV-6W6000/1000.2---2×200.5---2×50Level1---2×80Level3---2×2002×4007.2/32/60JLSZV-10W10000/1002×40012/42/75Rarameter of current partRate …
- Category：Outdoor Combined Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

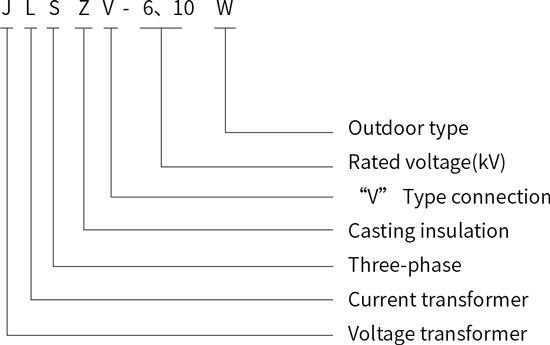

Type Description
Technical Data
| Rarameter voltgae part | ||||
| Type | Rated voltgae ratio(V) | Accuracy class and rated secondary output(VA) | Max.output(VA) | Rated insulation level(kV) |
| JLSZV-6W | 6000/100 | 0.2---2×20 0.5---2×50 Level 1---2×80 Level 3---2×200 | 2×400 | 7.2/32/60 |
| JLSZV-10W | 10000/100 | 2×400 | 12/42/75 | |
| Rarameter of current part | ||||||
| Rated primary current(A) | Single transformation ratio | Accuracy class and rated secondary output(VA) | Accuracy class and rated secondary output(VA) | Accuracy class and rated secondary output(VA) | 1s thermal current(kA) | Rated dynamic current(kA) |
| 0.2s | 0.5s | 0.5 | ||||
| 7.5-10-15 | 7.5 | 10 | 10 | 15 | 0.3 | 0.75 |
| 10-15-20 | 10 | 0.6 | 1.5 | |||
| 15-20-30 | 15 | 0.9 | 2.25 | |||
| 20-30-40 | 20、25 | 1.2 | 3 | |||
| 30-40-50 | 30 | 1.8 | 4.5 | |||
| 40-50-75 | 40 | 2.4 | 6 | |||
| 50-75-100 | 50 | 3 | 7.5 | |||
| 75-100-150 | 75 | 4.5 | 11.25 | |||
| 100-150-200 | 100 | 6 | 15 | |||
| 150-200-300 | 150 | 9 | 22.5 | |||
| 200-300-400 | 200、250 | 12 | 30 | |||
| 300-400-500 | 300 | 18 | 45 | |||
| 400-500-600 | 400 | 24 | 60 | |||
| 500-600-800 | 500-1000 | 30 | 75 | |||
| 600-800-100 | 36 | 90 | ||||

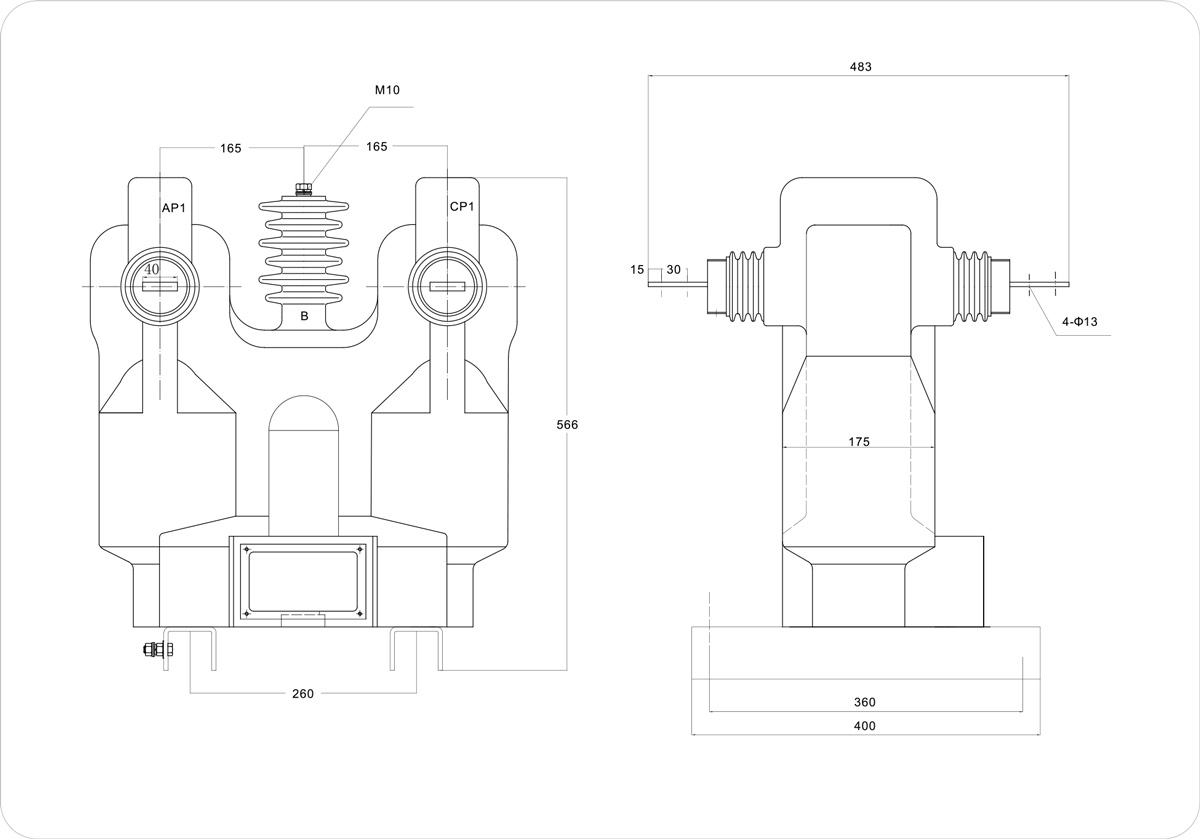

Overall Dimension Drawing

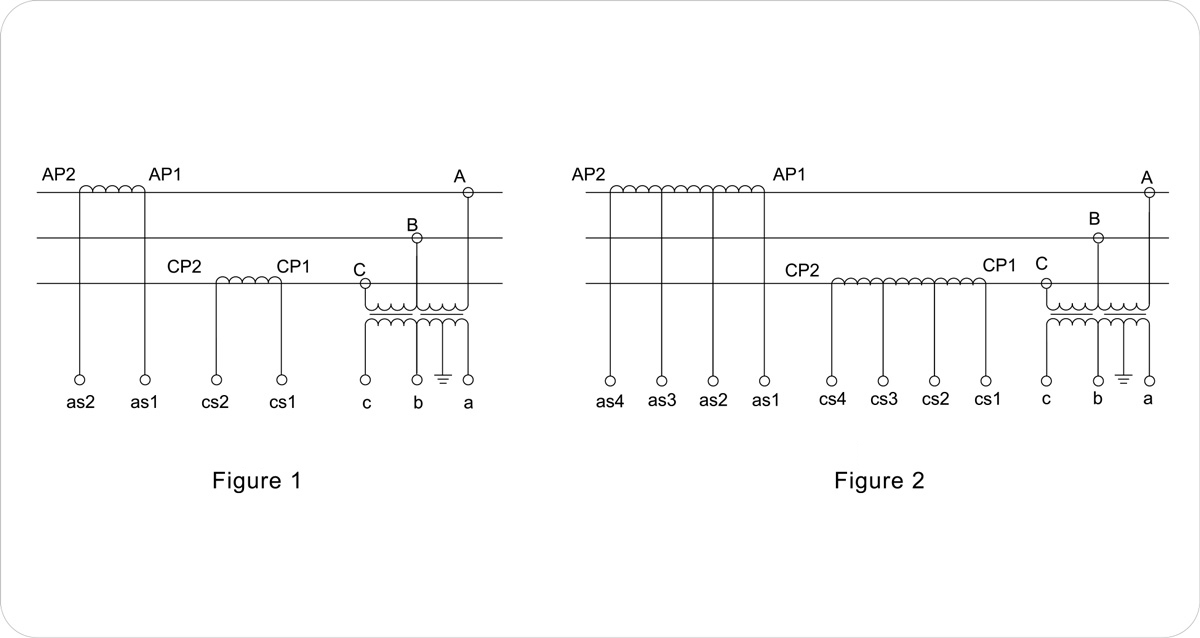

Wiring Diagram
