Voltage Transformer Outdoor Combined Transformer Electromagnetic Transformer Epoxy Casting 10kV JLSZY-6、10W

Intro：Type DescriptionTechnical DataParameter voltage partTypeRated voltage ratio(V)Accuracy class and rated secondary output(VA)Max.output(VA)Rated insulation level(kV)JLSZY-6W6000/1000.2---150.5---201---303007.2/32/60JLSZY-10W10000/10012/42/75Rarameter of current partRated primary current(A)Single ratio …
Category：Outdoor Combined Transformer
Clicknum：
Tel：+86 05926532199
Fax：+86 05926531799
Email：xujia8297@gmail.com

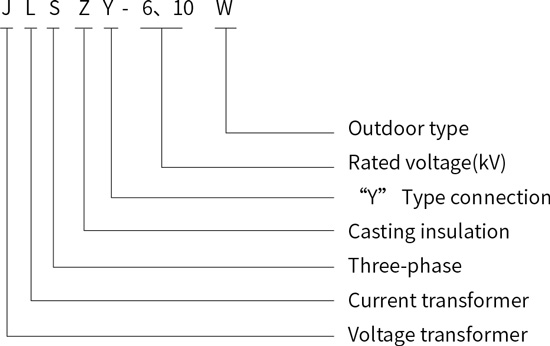

Type Description

Technical Data

Parameter voltage part
Type	Rated voltage ratio(V)	Accuracy class and rated secondary output(VA)	Max.output(VA)	Rated insulation level(kV)
JLSZY-6W	6000/100	0.2---15 0.5---20 1---30	300	7.2/32/60
JLSZY-10W	10000/100	0.2---15 0.5---20 1---30	300	12/42/75

Rarameter of current part
Rated primary current(A) Single ratio	Rated secondary current (A)	Rated short time thermal current (kA/s RMS)	Rated dynamic current (kA peak)	Accuracy class and rated secondary output(VA)
5	5	0.3	0.75	10VA/0.2S级
7.5		0.3	0.75
10		0.6	1.5
15		0.9	2.25
20		1.2	3
25		1.5	3.75
30		1.8	4.5
40		2.4	6
50		3	7.5
75		4.5	11.25
100		6	15
150		9	22.5
200		12	30
250		12	30
300		18	45
400		24	60
500		30	75
600		36	90
750		36	90
800		48	120
1000		60	130

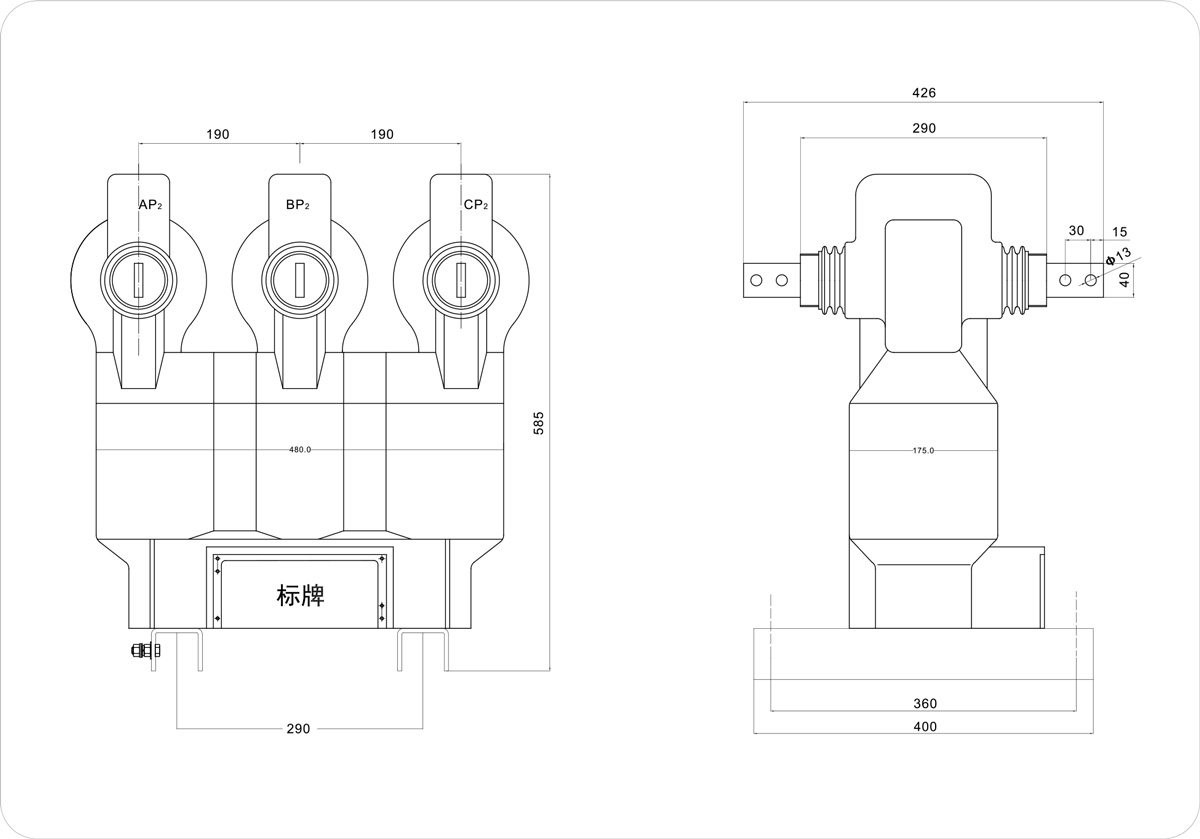

Overall Dimension Drawing

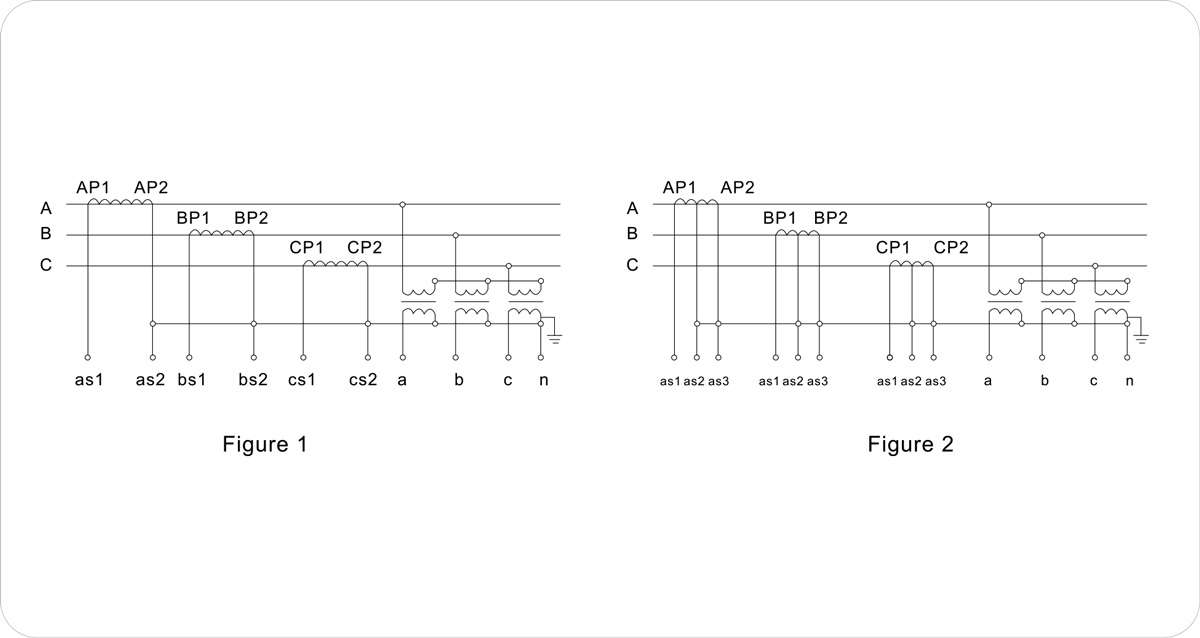

Wiring Diagram
