Voltage Transformer Measurement Transformer Measuring Transformer 10kV JDZ10-3、6、10(Q)
- Intro：Type DescriptionTechnical DataRated voltage ratio (V)Rated secondary output(VA)Max. output(VA)Rated insulation level (kV)NotesWiring diagram0.20.5Level1Level30.2/30.5/33000/1001530601502003.6/25/407.2/32/6012/42/75Same RZLFigure 1-26000/10010000/1006000/220/30803005007.2/32/6010000/220///30050012/42 …
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

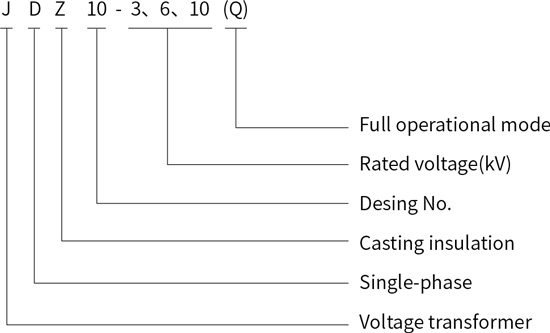

Type Description
Technical Data
| Rated voltage ratio (V) | Rated secondary output(VA) | Max. output(VA) | Rated insulation level (kV) | Notes | Wiring diagram | ||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/3 0.5/3 | |||||
| 3000/100 | 15 | 30 | 60 | 150 | 200 | 3.6/25/40 7.2/32/60 12/42/75 | Same "RZL" | Figure 1-2 | |
| 6000/100 | |||||||||
| 10000/100 | |||||||||
| 6000/220 | / | 30 | 80 | 300 | 500 | 7.2/32/60 | |||
| 10000/220 | / | / | / | 300 | 500 | 12/42/75 | |||
| 6000/100/220 | / | / | / | / | 15/300 30/300 | 500 | 7.2/32/60 | Figure 3-4 | |
| 10000/100/220 | / | / | / | / | 500 | 12/42/75 | |||

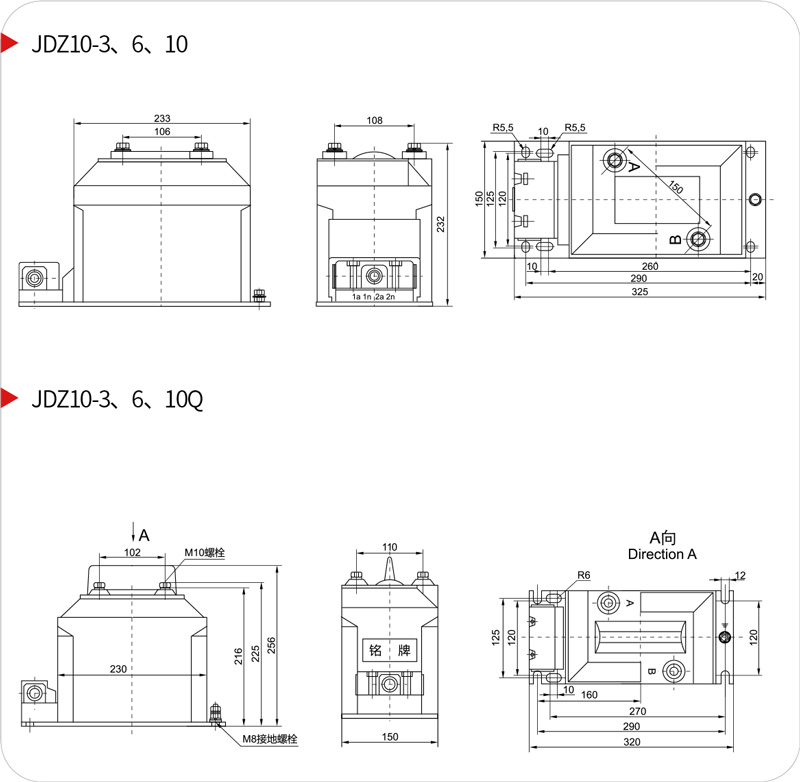

Overall Dimension Drawing

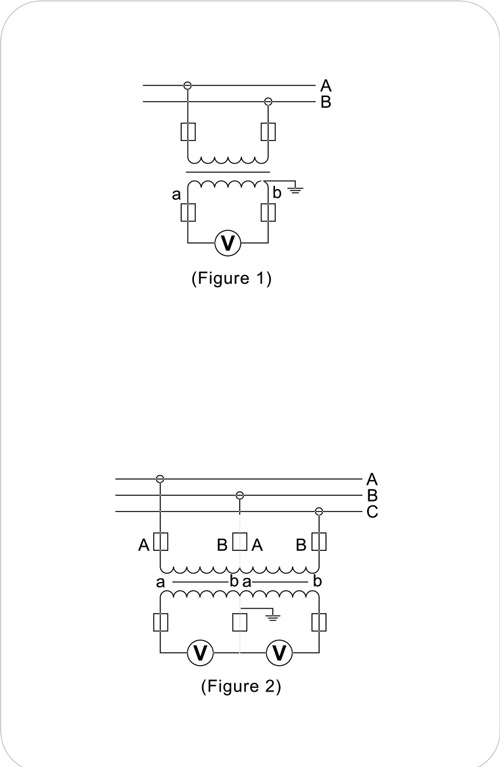

Wiring Diagram
