Voltage Transformer High Altitude Transformer JDZ (X) 11-3, 6, 10a (G)
- Intro：Current and voltage measurements from 0.6 kV to 52 kV for the protection and monitoring of medium voltage power systems. The range of electric values in power supply systems is extensive. This is why it is necessary to match the respective currents and voltages to the values appropriate to connected measuring, protection, and control instruments.
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

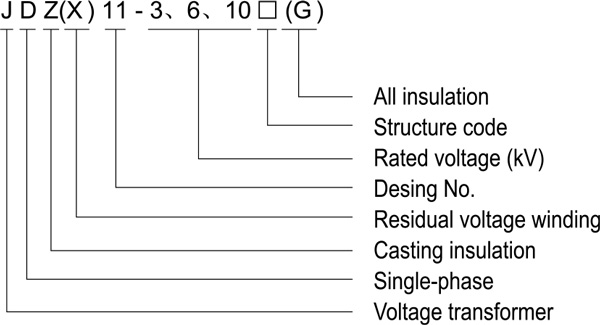

Type Description
Technical Data
| Type | Rated voltage ration (V) | Rated secondary output(VA) | Max.output (VA) | Rated insulation level (kV) | Notes | Wiring diagram | ||||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | ||||||
| JDZ11-3A | 3000/100 | 40 | 100 | 200 | 400 | / | / | / | 1000 | 3.6/25/40 | Same "UNZ" | Figure 1-2 |
| JDZ11-6A | 6000/100 | 7.2/32/60 | ||||||||||
| JDZ11-10A | 10000/100 | 12/42/75 | Figure 3-4 | |||||||||
| 10000/220 | ||||||||||||
| 10000/100/100 | / | / | / | / | 20/20 20/30 | 30/30 | / | 500/500 | ||||
| 10000/100/220 | / | / | / | / | 0.2/3---40/400 0.5/3---100/400 | / | 800/1000 | |||||
| JDZX11-3AG | 3000/√3 / 100/√3 / 100/3 | 20 | 60 | 100 | 200 | / | / | 100 | 400 | 3.6/25/40 | / | Figure 5 |
| JDZX11-6AG | 6000/√3 / 100/√3 / 100/3 | 7.2/32/60 | Figure 5 | |||||||||
| JDZX11-10AG | 10000/√3 / 100/√3 / 100/3 | 12/42/75 | Figure 5 | |||||||||
| 10000/√3 / 100/√3 / 100/√3 / 100/3 | / | / | / | / | 15/15 15/20 | 25/25 | 300/300 | Figure 6 | ||||

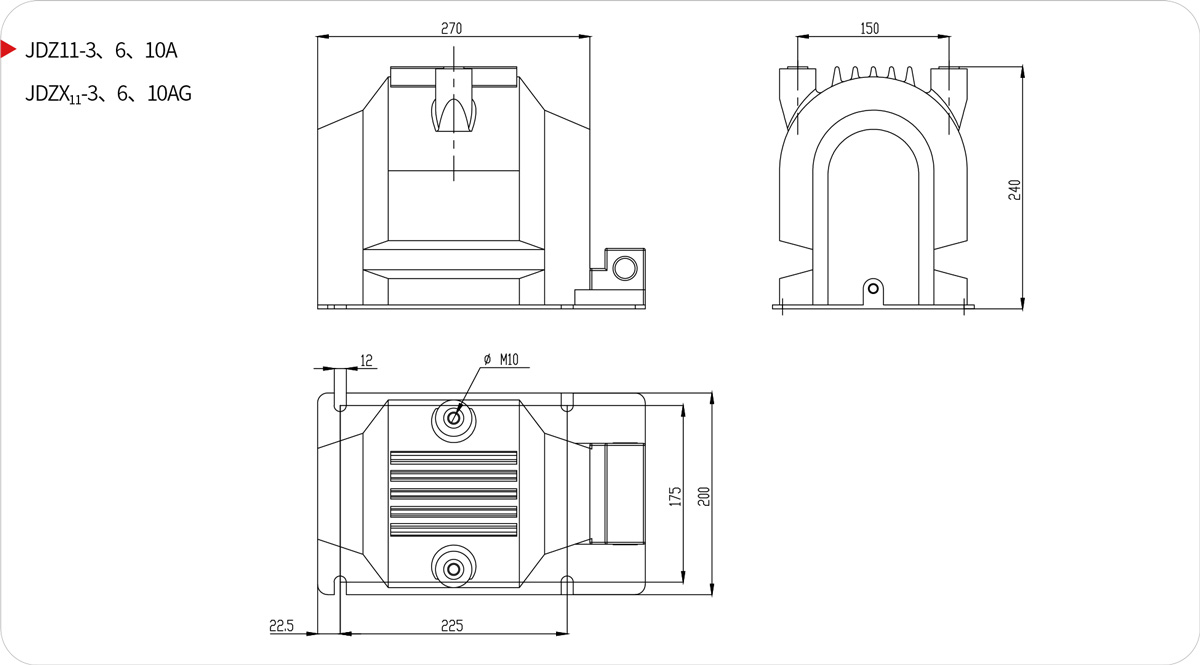

Overall Dimension Drawing

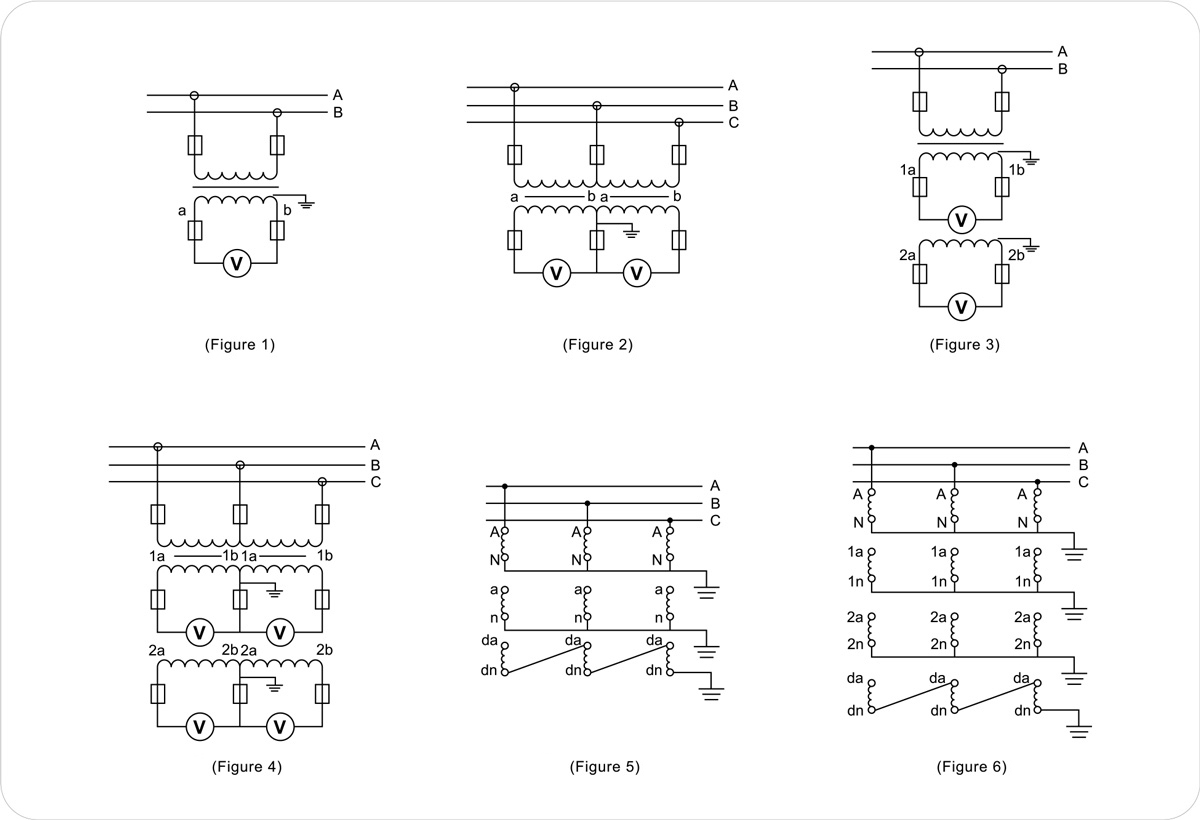

Wiring Diagram
