Voltage Transformer Capacity 2000-3000VA Power Transformers JDZC-6、10
- Intro：Current and voltage measurements from 0.6 kV to 52 kV for the protection and monitoring of medium voltage power systems. The range of electric values in power supply systems is extensive. This is why it is necessary to match the respective currents and voltages to the values appropriate to connected measuring, protection, and control instruments. Rated voltage ration:1000/100/220(Customizable parameters） Max.output:2000-3000（VA) Rated secondary output:0.2/3---50/1000 0.5/3---80/1000 Max.output:2000（VA) 0.2/3---50/1500 0.5/3---80/1500 Max.output:3000（VA)
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

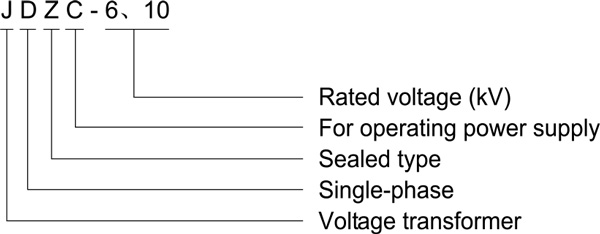

Type Description
Technical Data
| Type | Rated voltage ration (V) | Rated secondary output (VA) | Max.output (VA) | Rated insulation level (kV) |
| JDZC-6 JDZC-10 | 6000/100/220 10000/100/220 | 0.2/3---30/300 0.5/3---50/300 | 500 700 | 7.2/32/60 12/42/75 |
| 0.2/3---30/400 0.5/3---50/400 | 800 1000 | |||
| 0.2/3---50/1000 0.5/3---80/1000 | 2000 | |||
| 0.2/3---50/1500 0.5/3---80/1500 | 3000 |

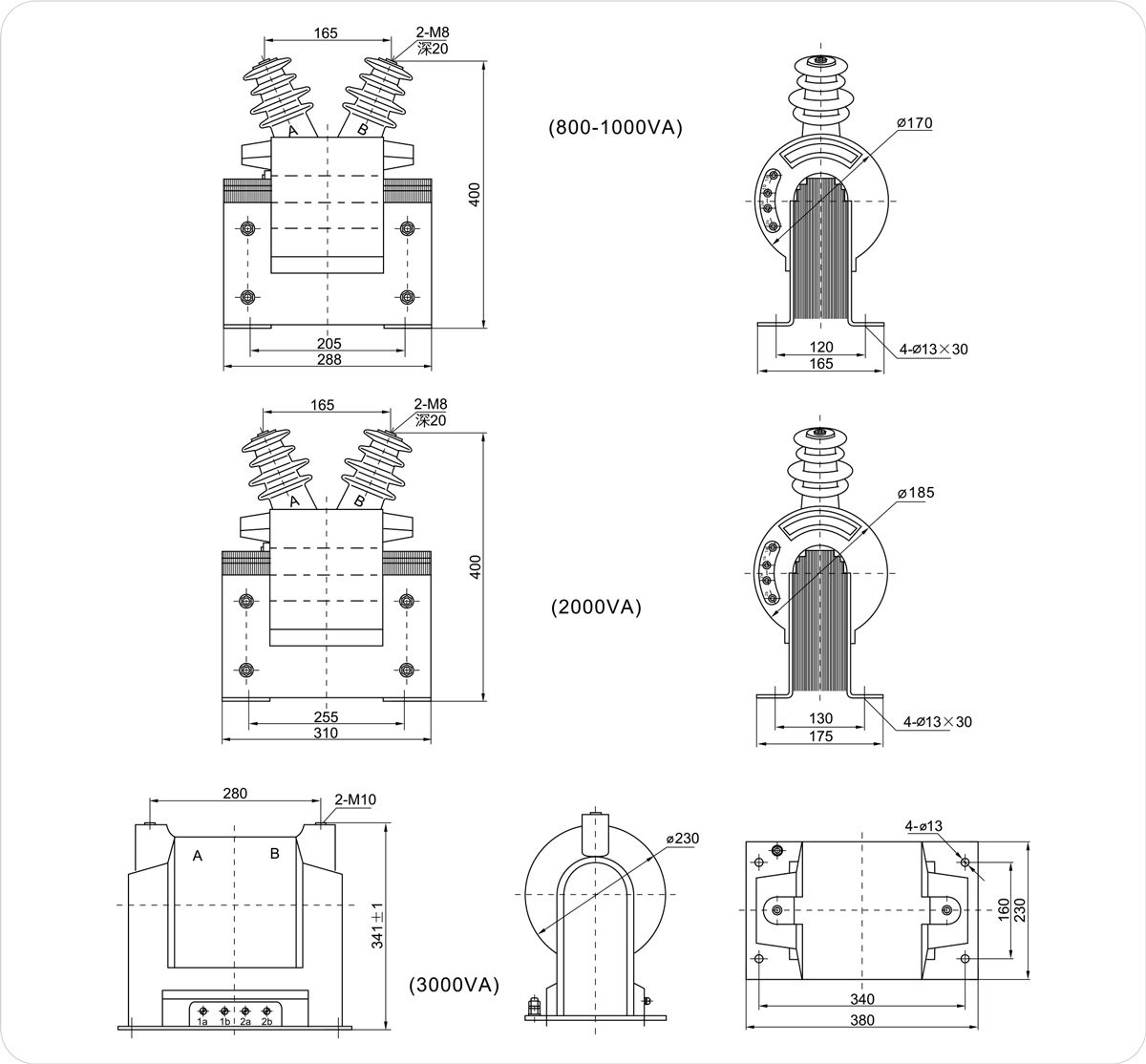

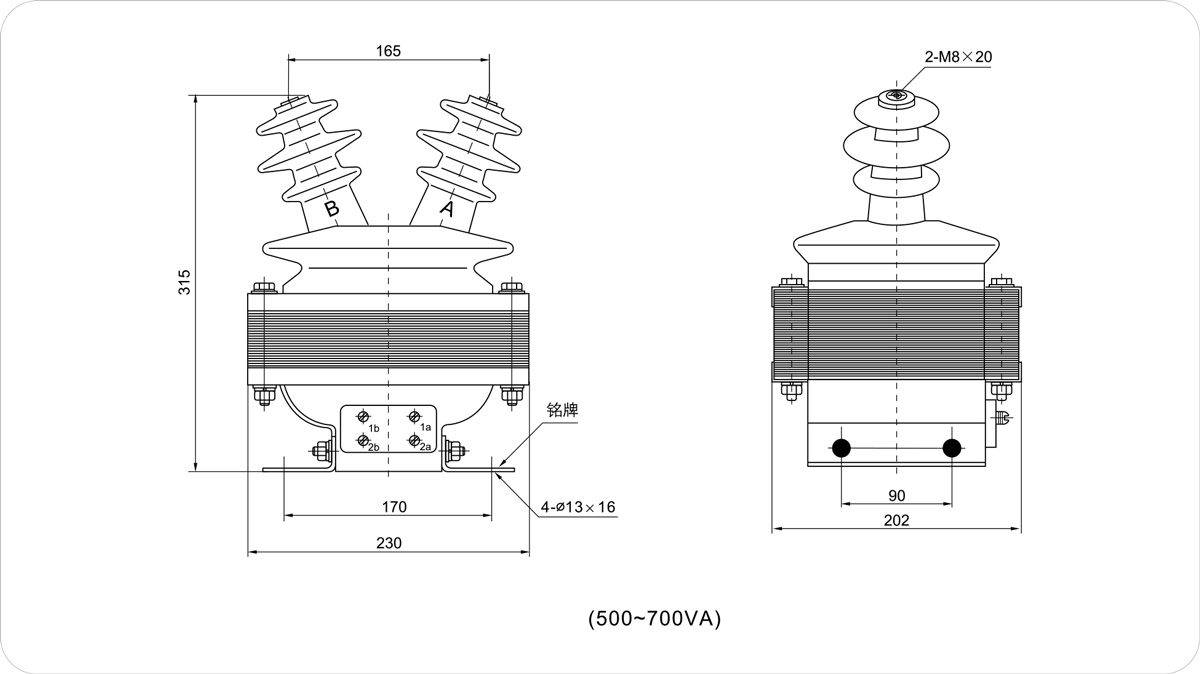

Overall Dimension Drawing

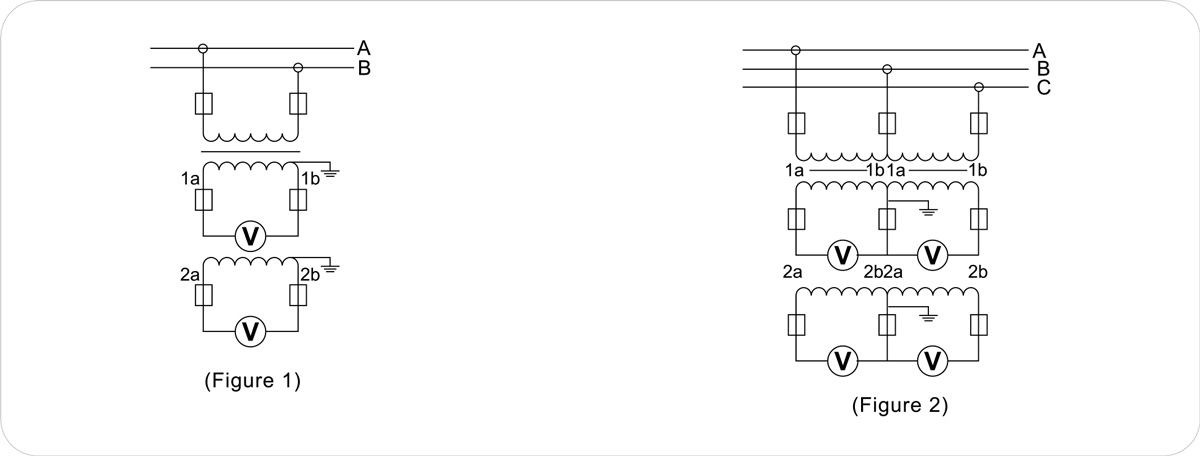

Wiring Diagram
