Voltage Transformer Measurement Transformer Measuring Transformer 10kV JDZ(X)
- Intro：Type DescriptionTechnical DataTypeRated voltage ration(V)Rated secondary output(VA)Max. output(VA)Rated insulation level(kV)NotesWiring diagram0.20.5Level 1Level30.2/0.20.2/0.50.5/0.56PJDZ10-3B13000/1003050100200///6003.6/25/40Same RZIOLFigure 1-2JDZ10-6B16000/1006007.2/32/60JDZ10-10B110000/100300/3 …
- Category：10kV/24kV/35kV Voltage Transformer
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

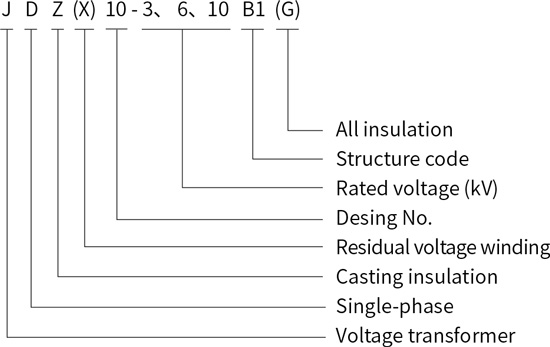

Type Description
Technical Data
| Type | Rated voltage ration (V) | Rated secondary output(VA) | Max. output (VA) | Rated insulation level (kV) | Notes | Wiring diagram | ||||||
| 0.2 | 0.5 | Level 1 | Level 3 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | ||||||
| JDZ10-3B1 | 3000/100 | 30 | 50 | 100 | 200 | / | / | / | 600 | 3.6/25/40 | Same "RZIOL" | Figure 1-2 |
| JDZ10-6B1 | 6000/100 | 600 | 7.2/32/60 | |||||||||
| JDZ10-10B1 | 10000/100 | 300/300 | 12/42/75 | Figure 3-4 | ||||||||
| 10000/100/100 | / | / | / | / | 15/15 15/20 | 30/30 | 300/300 | |||||
| 10000/100/220 | / | / | / | / | 0.2/3---30/500 0.5/3---50/500 | / | 1000 | |||||
| JDZX10-3B1(G) | 3000/√3 100/√3 100/√3 | 30 | 50 | 100 | 200 | / | / | 100 | 400 | 3.6/25/40 | / | Figure 5 |
| JDZX10-6B1(G) | 6000/√3 100/√3 100/√3 | 7.2/32/60 | ||||||||||
| JDZX10-10B1(G) | 10000/√3 100/√3 100/√3 | 12/42/75 | ||||||||||
| 10000/√3 100/√3 100/√3 100/√3 | / | / | / | / | 15/15 15/20 | 30/30 | / | 200/200 | Figure 6 | |||

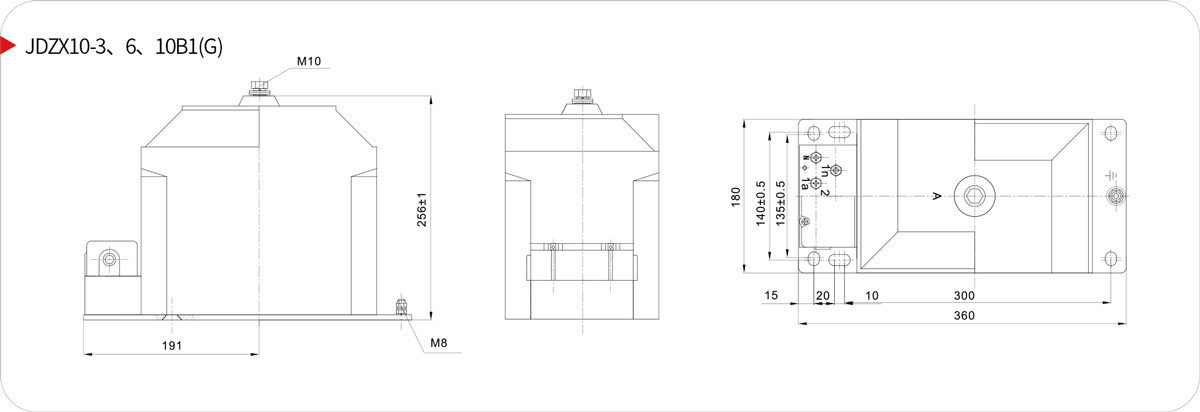

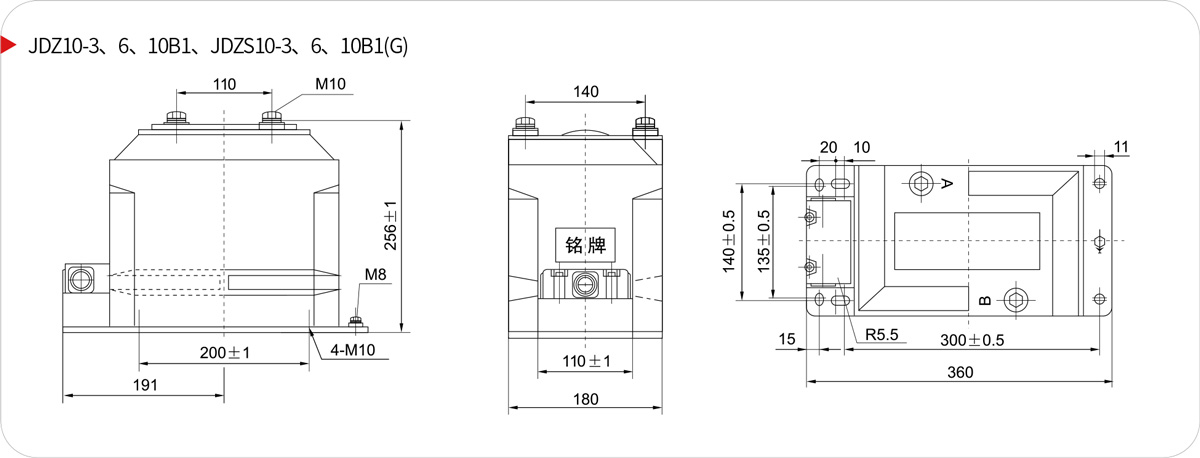

Overall Dimension Drawing

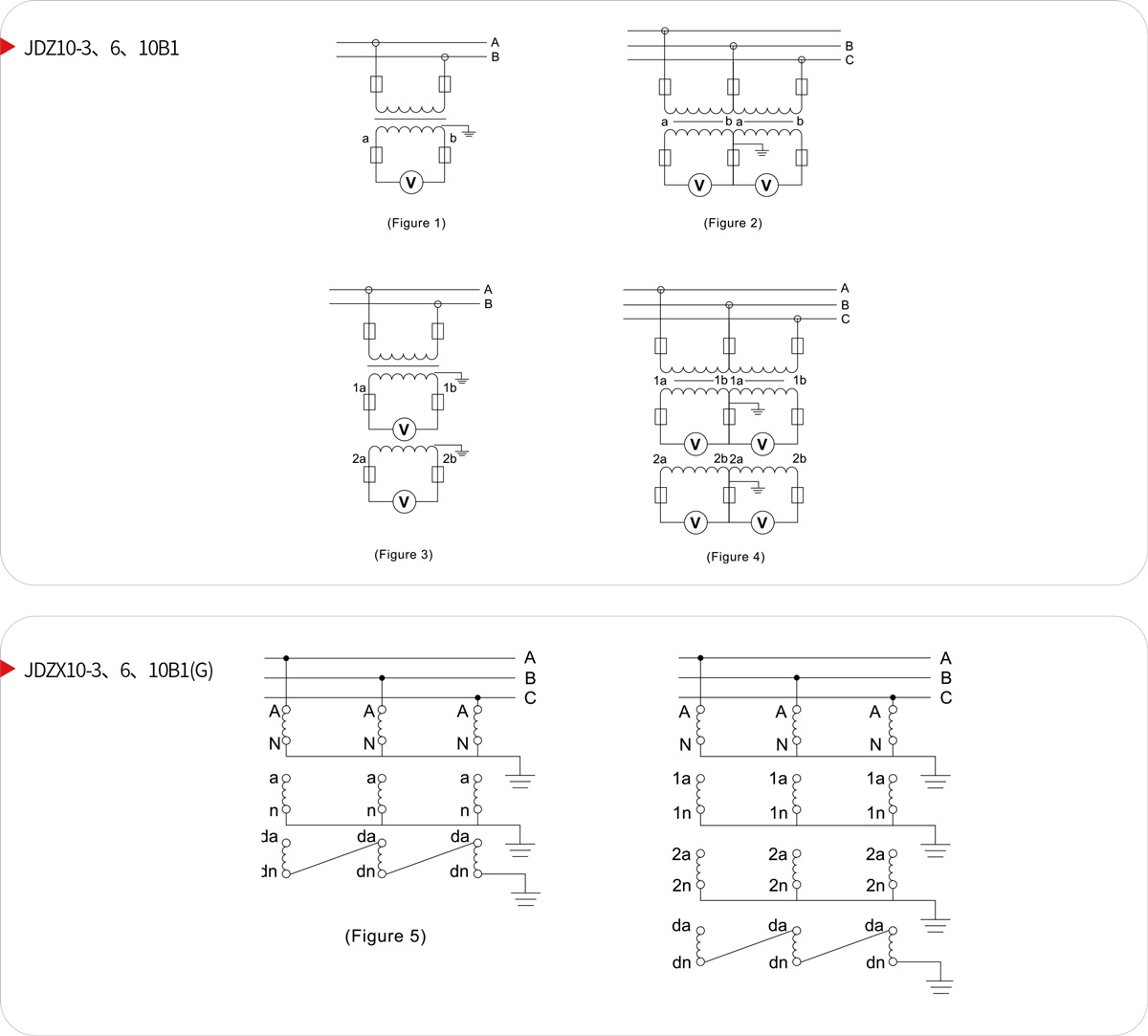

Wiring Diagram
