LMZC-10Inflatable Cabinet Dedicated Feedthrough Current Transformer
- Intro：Type DescriptionTechnical Data1. Rated frequency： 50Hz or 60Hz；2. Rated secondary current： 5A or 1A；3. rated short-time thermal current： 40KA， 2s；4. Rated continuous thermal current: 1200% In；5. Load power factor: COSP=0.8(lag)；6. Safety factor(test set)： FS10；7. accuracy limit system(protection): 1 …
- Category：Low-voltage Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

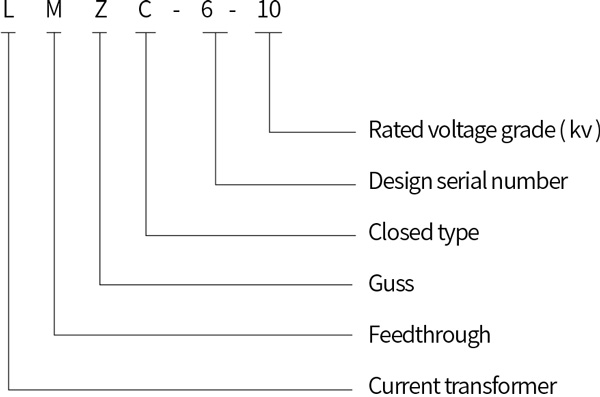

Type Description
Technical Data
1. Rated frequency： 50Hz or 60Hz；
2. Rated secondary current： 5A or 1A；
3. rated short-time thermal current： 40KA， 2s；
4. Rated continuous thermal current: 1200% In；
5. Load power factor: COS<P=0.8(lag)；
6. Safety factor(test set)： FS<10；
7. accuracy limit system(protection): 10P10, 10P15, 10P20 like.
Technical data form
| Type | Purpose | Measuring current | Protective Current transformer | Double winding current transformer | |||||||
| Accuracy class and rated burden | Accuracy class and rated burden | Accuracy class and rated burden | |||||||||
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | 10P20 | - | - | - | - | ||
| LMZC-6-10 | 75/5 | - | - | 2.5 | 1 | - | - | - | - | - | - |
| 100/5 | 2.5 | 2.5 | 5 | 1.5 | - | - | - | - | - | - | |
| 150/5 | 2.5 | 2.5 | 5 | 1.5 | - | - | - | - | - | - | |
| 200/5 | 3.75 | 3.75 | 5 | 3 | 2.5 | - | - | - | - | - | |
| 300/5 | 5 | 5 | 7.5 | 5 | 2.5 | - | - | - | - | - | |
| 400/5 | 5 | 5 | 7.5 | 5 | 3.25 | - | - | - | - | - | |
| 500/5 | 5 | 5 | 7.5 | 7.5 | 5 | - | - | - | - | - | |
| 600/5 | 7.5 | 7.5 | 10 | 7.5 | 5 | - | - | - | - | - | |
Note : The rated current ratio, accuracy level and its rated load are shown in fig. 2. the rated secondary current is 5A or 1A.

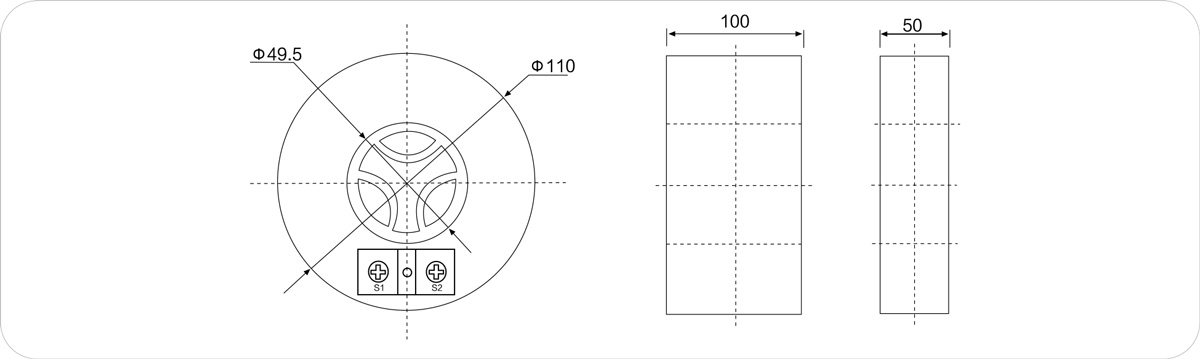

Overall Dimension Drawing
Relate Products
LMZC-10 High Accuracy (0.2) Current Transformer with 5P10 Protection
Busbar Mounting LMZC-10 CT for Switchgear and Industrial Power Systems
LMZC-10 Inflatable Cabinet Dedicated Feedthrough Current Transformer
LMZC-10Inflatable Cabinet Dedicated Feedthrough Current Transformer
LMZK-10 Special Open Type Current Transformer For Inflatable Cabinet
LSY-10/107 Ring-Type 10kV Current Transformer for GIS Window-Type Current Transformer GIS CT for Switchgear
LSY3-10/107X Current Transformer Protection Class / Metering Clas Busbar Mounted CTs CT
LSY3-10/127 Three-phase Integrated Current Transformer 400A 5P10 Current Transformer for GIS
