LMZK-10 Special Open Type Current Transformer For Inflatable Cabinet
- Intro：Type DescriptionTechnical DataTypePurposeMeasuring currentPeotective Current transformerDouble winding current transformerAccuracy class and rated burdenAccuracy class and rated burdenAccuracy class and rated burdencurrent ratio0.51310P510P100.5110P1010P5LMZK-1050/5--2.5------75/5--2.5------100/5-2. …
- Category：Low-voltage Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

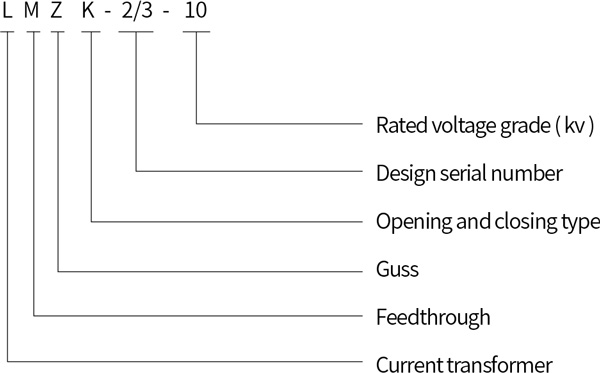

Type Description
Technical Data
| Type | Purpose | Measuring current | Peotective Current transformer | Double winding current transformer | ||||||
| Accuracy class and rated burden | Accuracy class and rated burden | Accuracy class and rated burden | ||||||||
| current ratio | 0.5 | 1 | 3 | 10P5 | 10P10 | 0.5 | 1 | 10P10 | 10P5 | |
| LMZK-10 | 50/5 | - | - | 2.5 | - | - | - | - | - | - |
| 75/5 | - | - | 2.5 | - | - | - | - | - | - | |
| 100/5 | - | 2.5 | - | 2.5 | - | - | - | - | - | |
| 150/5 | - | 2.5 | - | 3.75 | 1.5 | - | - | - | - | |
| 200/5 | 2.5 | 2.5 | - | 5 | 2.5 | - | - | - | - | |
| 300/5 | 2.5 | 2.5 | - | 5 | 2.5 | - | 2.5 | - | 1.5 | |
| 400/5 | 5 | 5 | - | 5 | 2.5 | 2.5 | 2.5 | - | 2.5 | |
| 500/5 | 5 | 5 | - | 5 | 2.5 | 2.5 | 2.5 | - | 2.5 | |
| 600/5 | 5 | 5 | - | 5 | 2.5 | 2.5 | 2.5 | - | 2.5 | |

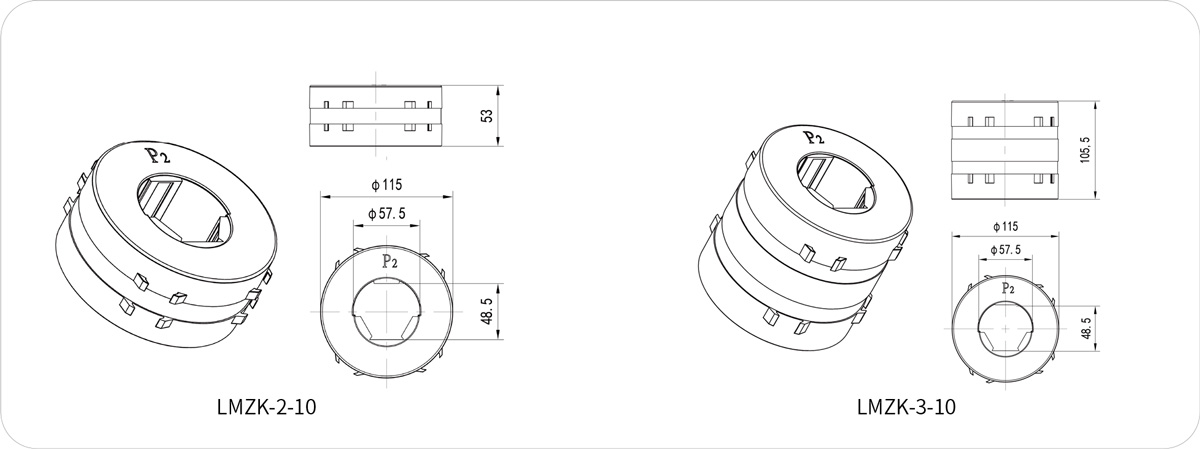

Overall Dimension Drawing
