LSY-10/107 Ring-Type 10kV Current Transformer for GIS Window-Type Current Transformer GIS CT for Switchgear
- Intro：Designed for GIS, it adopts Ring-Type or Window-Type structure, which saves space by directly embedding into the busbar or cable compartment of the inflatable cabinet without additional mounting brackets. Suitable for Medium Voltage (MV) or High Voltage (HV) compact switchgear (e.g. 12kV~40.5kV systems).
- Category：Low-voltage Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads

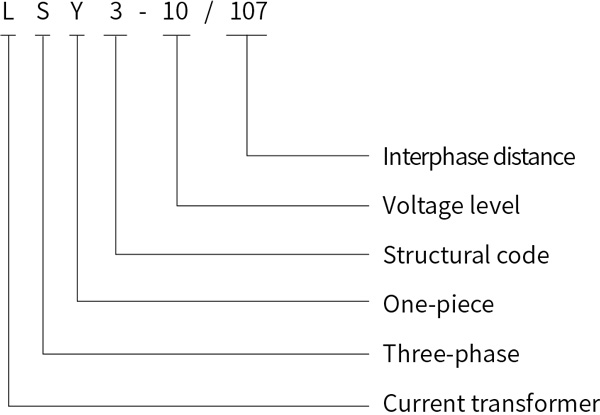

Type Description
Technical data form
The rated current ratio, accuracy level and its rated load are shown below, with rated secondary current 5A or 1A.
| Use | Measuring current transformers | Protection current transformer | Double winding current transformer | |||||||
| Accuracy and rated load (VA) | Accuracy and rated load (VA) | Accuracy class and rated burden | ||||||||
| Stabilize the primary current | 0.2s | 0.2 | 0.5 | 10P20 | 10P15 | 10P10 | 0.2s | 0.5 | 10P15 | 10P10 |
| 75 | - | - | 1 | - | - | - | - | 1 | - | - |
| 100 | - | - | 2.5 | - | - | - | - | 1 | - | - |
| 150 | - | - | 2.5 | - | - | 2.5 | - | 1.5 | - | - |
| 200 | - | 2.5 | 2.5 | - | - | 5 | - | 2.5 | - | 5 |
| 300 | 2.5 | 2.5 | 5 | - | - | 5 | - | 2.5 | - | 5 |
| 400 | 5 | 5 | 5 | - | - | 7.5 | - | 5 | - | 7.5 |
| 500 | 5 | 5 | 10 | - | - | 10 | - | 5 | - | 10 |
| 600 | 5 | 5 | 10 | - | - | 10 | - | 5 | - | 10 |
| 800 | 10 | 10 | 10 | - | - | 10 | - | 5 | - | 10 |
Note: Stainless steel spring card is customized according to user's requirements

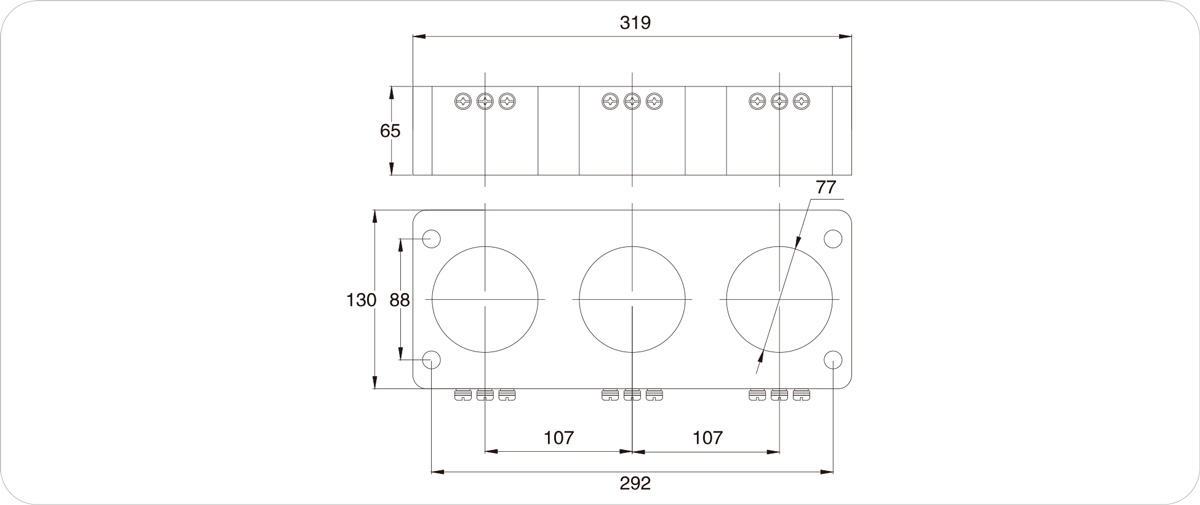

Overall Dimension Drawing
