LSY3-10/107X Current Transformer Protection Class / Metering Clas Busbar Mounted CTs CT
- Intro：Designed for GIS, it adopts Ring-Type or Window-Type structure, which saves space by directly embedding into the busbar or cable compartment of the inflatable cabinet without additional mounting brackets. Suitable for Medium Voltage (MV) or High Voltage (HV) compact switchgear (e.g. 12kV~40.5kV systems).
- Category：Low-voltage Current Transformers
- Clicknum：
- Tel：+86 05926532199
- Fax：+86 05926531799
- Email：xujia8297@gmail.com
- Detail
- Related Video
- Technology Downloads
Type Description
Technical Data
| Type | Stabilize the primary current | Accuracy level and rated output (VA) | Zero Sequence Protection | Accuracy Class | Rated Output | ||||
| 0.2s | 0.2 | 0.5 | 3 | 10P10 | |||||
| LMZP-10 | 50/5 | - | - | - | 1 | 1 | 50/1 | 3 | 1 |
| 75/5 | - | - | - | 1 | 1 | 60/1 | 3 | 1 | |
| 100/5 | - | - | - | 1 | 1 | 100/1 | 3 | 25 | |
| 150/5 | - | - | - | 1 | 1 | 150/1 | 3 | 25 | |
| 200/5 | - | - | 2.5 | 2.5 | 2.5 | 3 | 25 | ||
| 300/5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 25 | ||
| 400/5 | 5 | 5 | 5 | 5 | 5 | 3 | 25 | ||
| 500/5 | 5 | 5 | 5 | 5 | 5 | 3 | 25 | ||
| 600/5 | 5 | 5 | 5 | 5 | 5 | 3 | 25 | ||
| 800/5 | 10 | 10 | 10 | 10 | 10 | 3 | 25 | ||

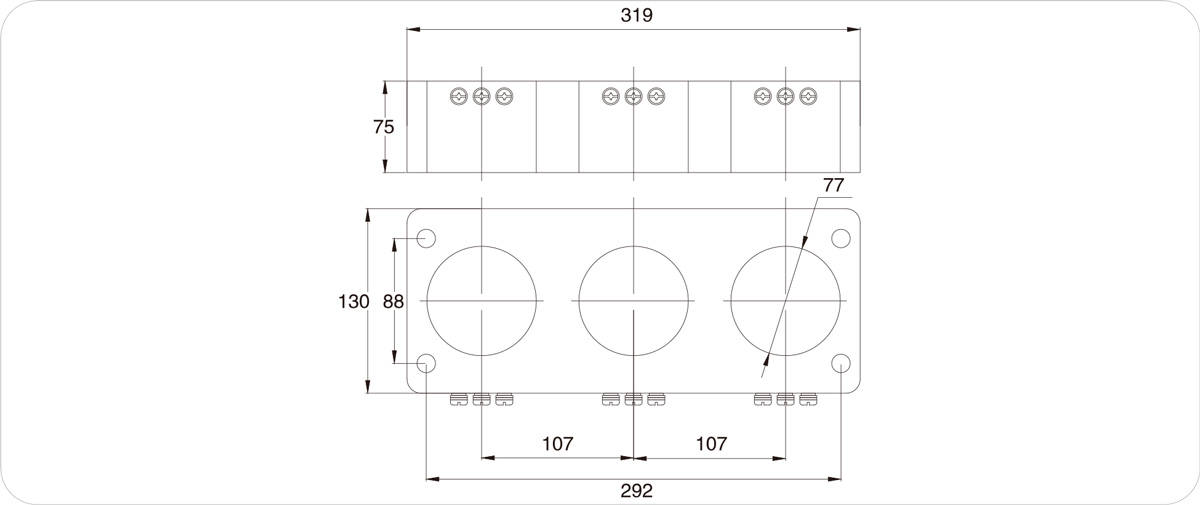

Overall Dimension Drawing
